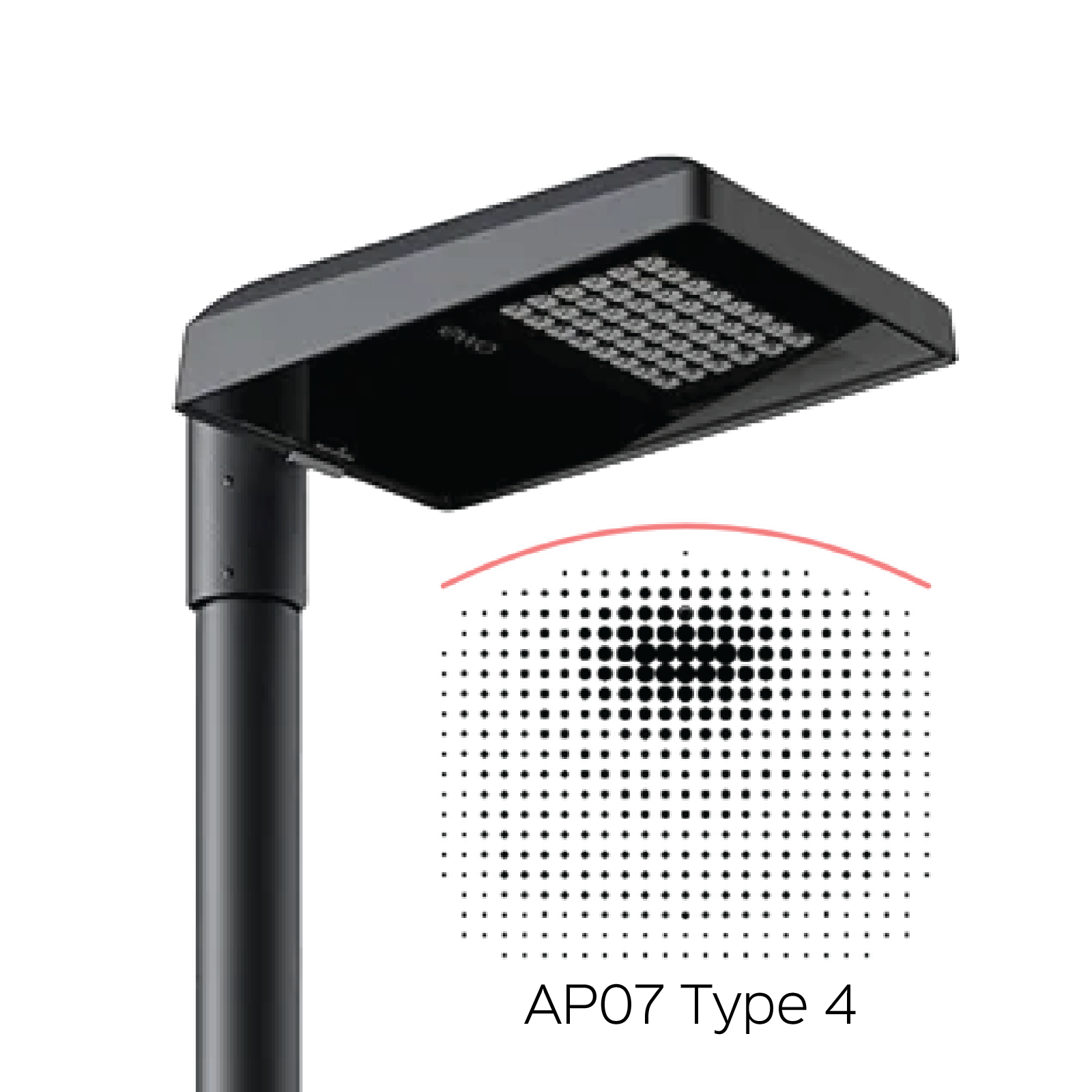

F-System Type 4 RBL

The F-System Type 4 RBL is an Energylight pre-configured package of the ewo F-System, using the AP07 extra forward throw optic with a backlight shield that cuts the light falling behind the pole, for edges next to homes, bush or waterways. It comes in two sizes, XS with 16, 32 or 48 LEDs and S with 48 or 64, for 4, 6 and 8m poles.

Set at 3000K CRI 70, it runs from 2520lm at 26W to 10100lm at 97W, up to 105lm/W, with DALI or switched control in a die-cast aluminium housing rated IP66 and IK08. Photometry and pole CAD files are in the download pack.

Part of the New Zealand Collection, six F-System packages for car park and area lighting: Type 3, Type 4 and Type 3+4, each also available as an RBL (rear backlight shield) version.

Want to learn more or chat about your project? Get in touch.
