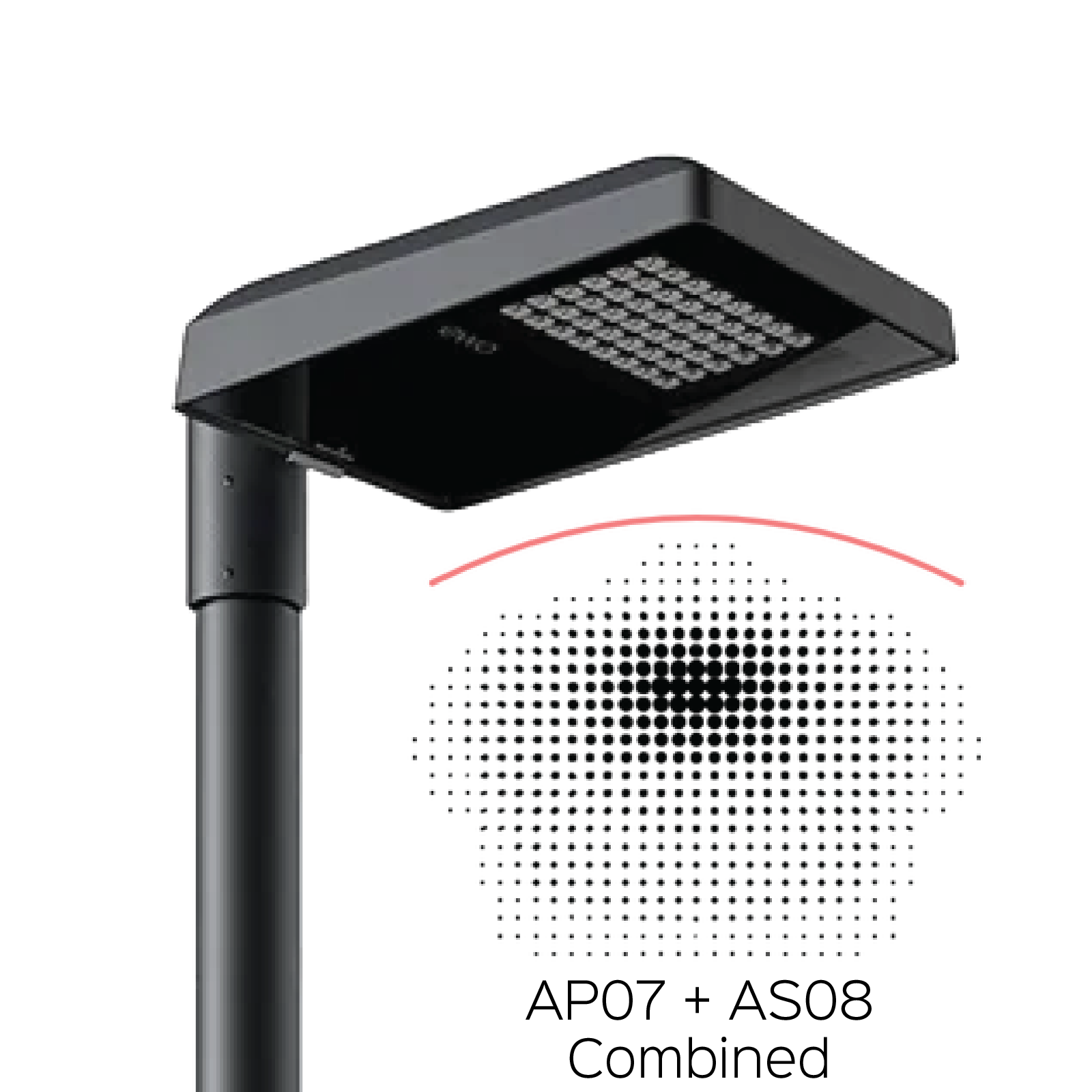

F-System Type 3+4

The F-System Type 3+4 is an Energylight pre-configured package of the ewo F-System, using the AS08 side and forward throw and AP07 extra forward throw optics combined in one head, for wider roads and areas that need both. It comes in two sizes, XS with 32 or 48 LEDs and S with 48 or 80, for 4, 6 and 8m poles.

Set at 3000K CRI 70, it runs from 7975lm at 69W to 15126lm at 122W, up to 124lm/W, with DALI or switched control in a die-cast aluminium housing rated IP66 and IK08. Photometry and pole CAD files are in the download pack.

Part of the New Zealand Collection, six F-System packages for car park and area lighting: Type 3, Type 4 and Type 3+4, each also available as an RBL (rear backlight shield) version.

Want to learn more or chat about your project? Get in touch.
