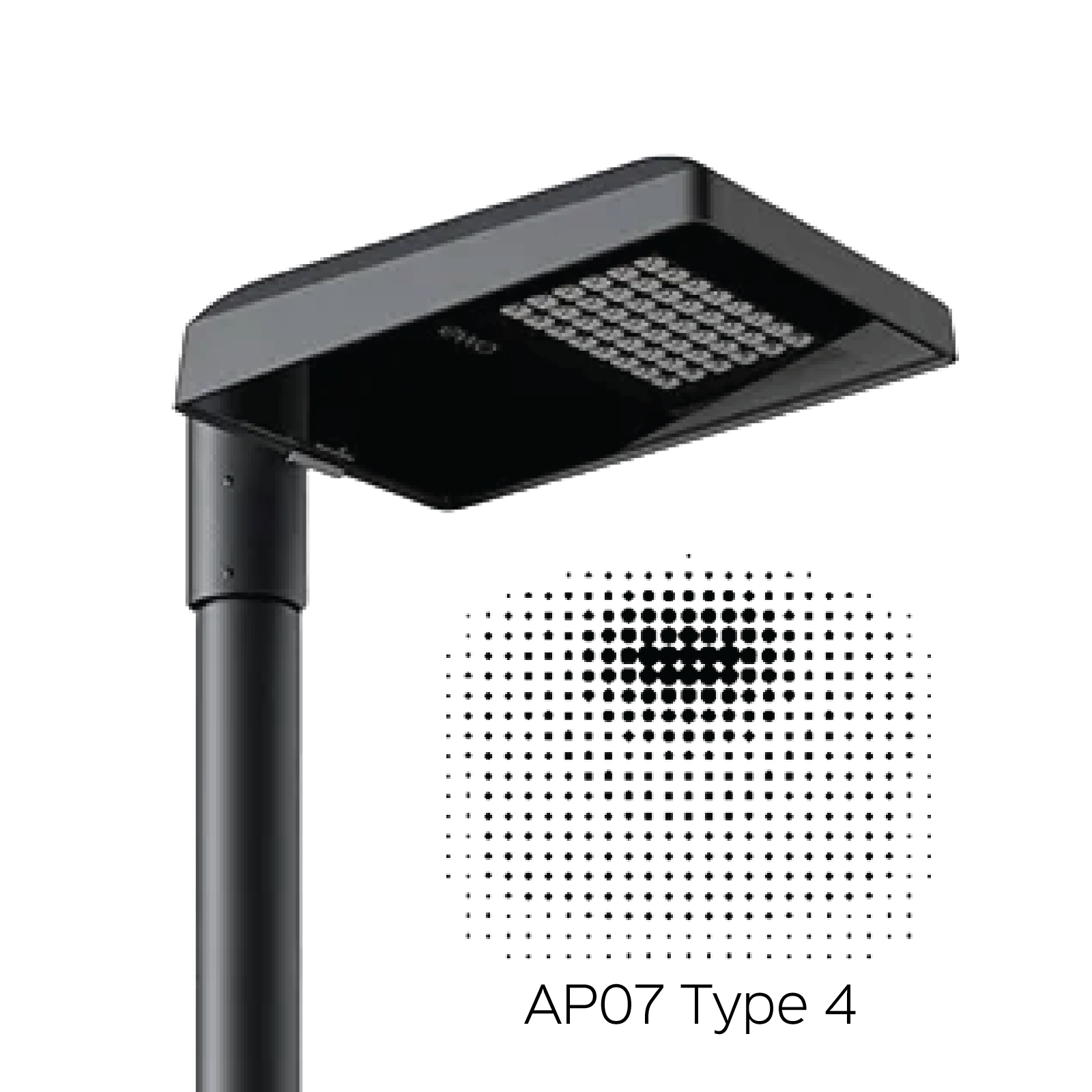

F-System Type 4

The F-System Type 4 is an Energylight pre-configured package of the ewo F-System, using the AP07 extra forward throw optic to push light well out from the pole across roads, car parks and open areas. It comes in two sizes, XS with 16, 32 or 48 LEDs and S with 48, 64 or 80, for 4, 6 and 8m poles.

Set at 3000K CRI 70, it runs from 3750lm at 36W to 16700lm at 146W, up to 114lm/W, with DALI or switched control in a die-cast aluminium housing rated IP66 and IK08. Photometry and pole CAD files are in the download pack.

Part of the New Zealand Collection, six F-System packages for car park and area lighting: Type 3, Type 4 and Type 3+4, each also available as an RBL (rear backlight shield) version.

In the XS size at 3000K with the AP07 optic, this setup is ADSA Approved by the Australasian Dark Sky Alliance.
