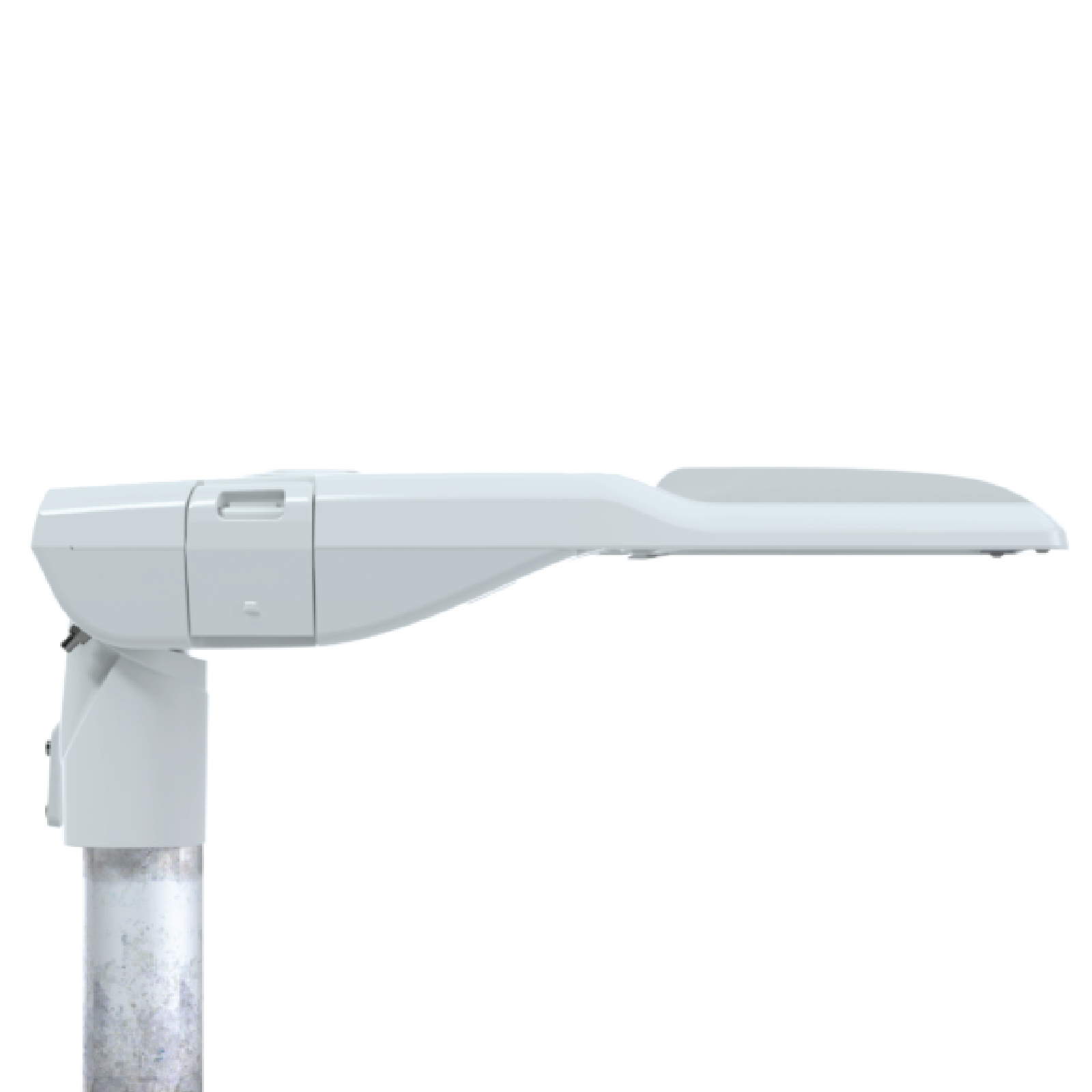

CU Phosco P863

The CU Phosco P863 is a road lantern for A roads and highways, replacing HID lanterns with up to 128 LEDs behind flat glass. Its optics reach glare class G6 with zero upward light.

Output runs from 3860lm at 28W to 26500lm at 168W on the 4x4 version, at up to 174lm/W, in 4000K with 3000K and 2700K options at CRI 70. Control is DALI or 1-10V with multi-step dimming, constant light output and Zhaga D4i, with a 7-pin NEMA or Zhaga Book 18 socket for photocells and central management nodes. Rated IP66 and IK09, it mounts side entry or post top on 34mm to 76mm spigots with ±10° tilt for heights of 4m to 10m, in RAL 7035 light grey or another RAL colour.

The P863 is DarkSky Approved by DarkSky International in the Commercial category, for versions at 3000K and below. The P863-128 in the 4x4 configuration is also ADSA Prized by the Australasian Dark Sky Alliance at 2700K.
