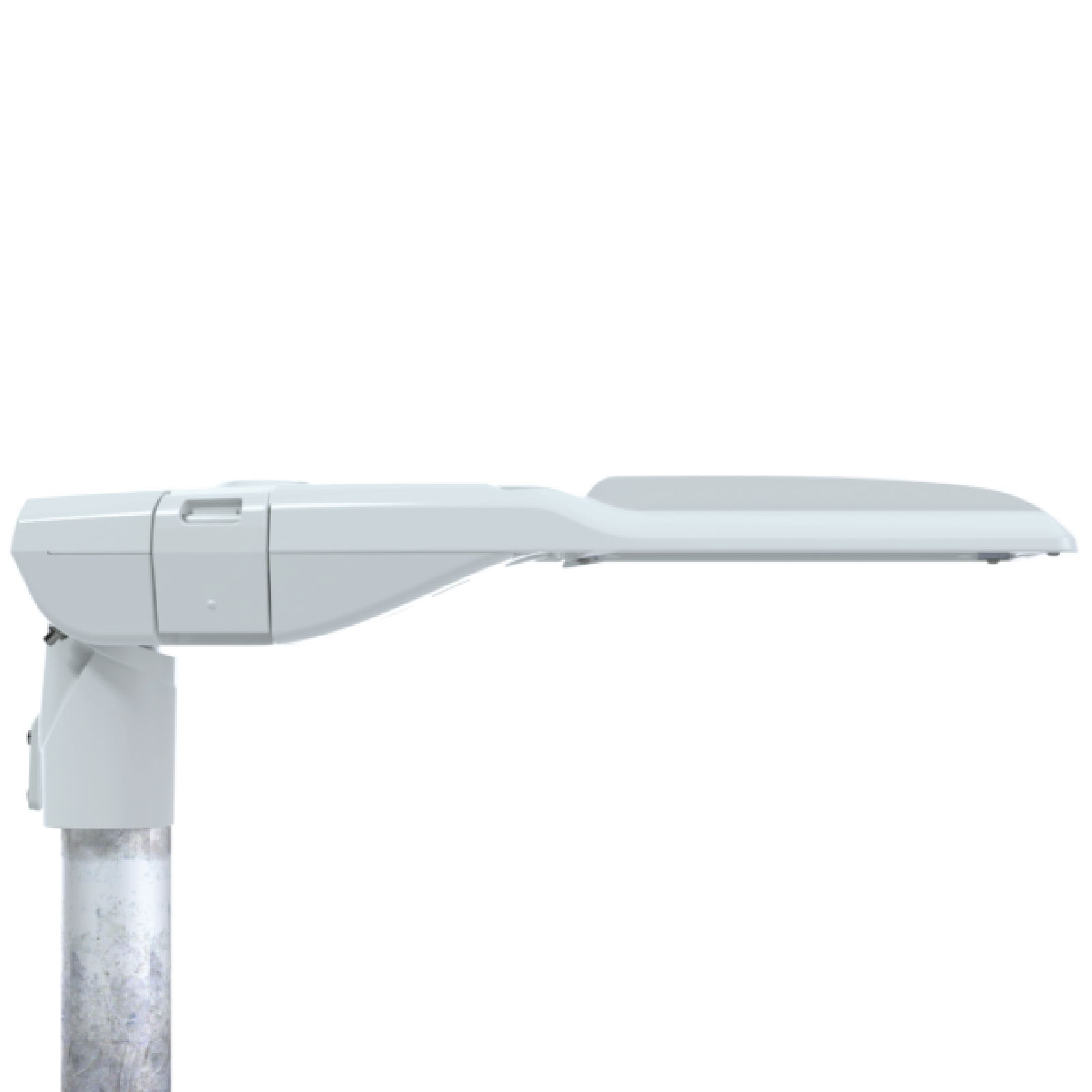

CU Phosco P862

The CU Phosco P862 is the largest lantern in the P range, a highways luminaire with 128 or 256 LEDs for wide, high-speed roads and major junctions. Its optics reach glare class G6 with zero upward light.

Output runs from 6000lm at 39W to 37930lm at 225W, at up to 174lm/W, in 4000K with 3000K and 2700K options at CRI 70. Control is DALI with multi-step dimming and Zhaga D4i, and a 7-pin NEMA or Zhaga Book 18 socket takes photocells, Bluetooth nodes or central management systems. Rated IP66 and IK09, it mounts side entry or post top on 34mm to 76mm spigots with ±10° tilt for heights of 5m to 12m, in RAL 7035 light grey or another RAL colour.

The P862 is DarkSky Approved by DarkSky International in the Commercial category, for versions at 3000K and below. The P862-128 and P862-256 in the 4x4 configuration are also ADSA Prized by the Australasian Dark Sky Alliance at 2700K.
