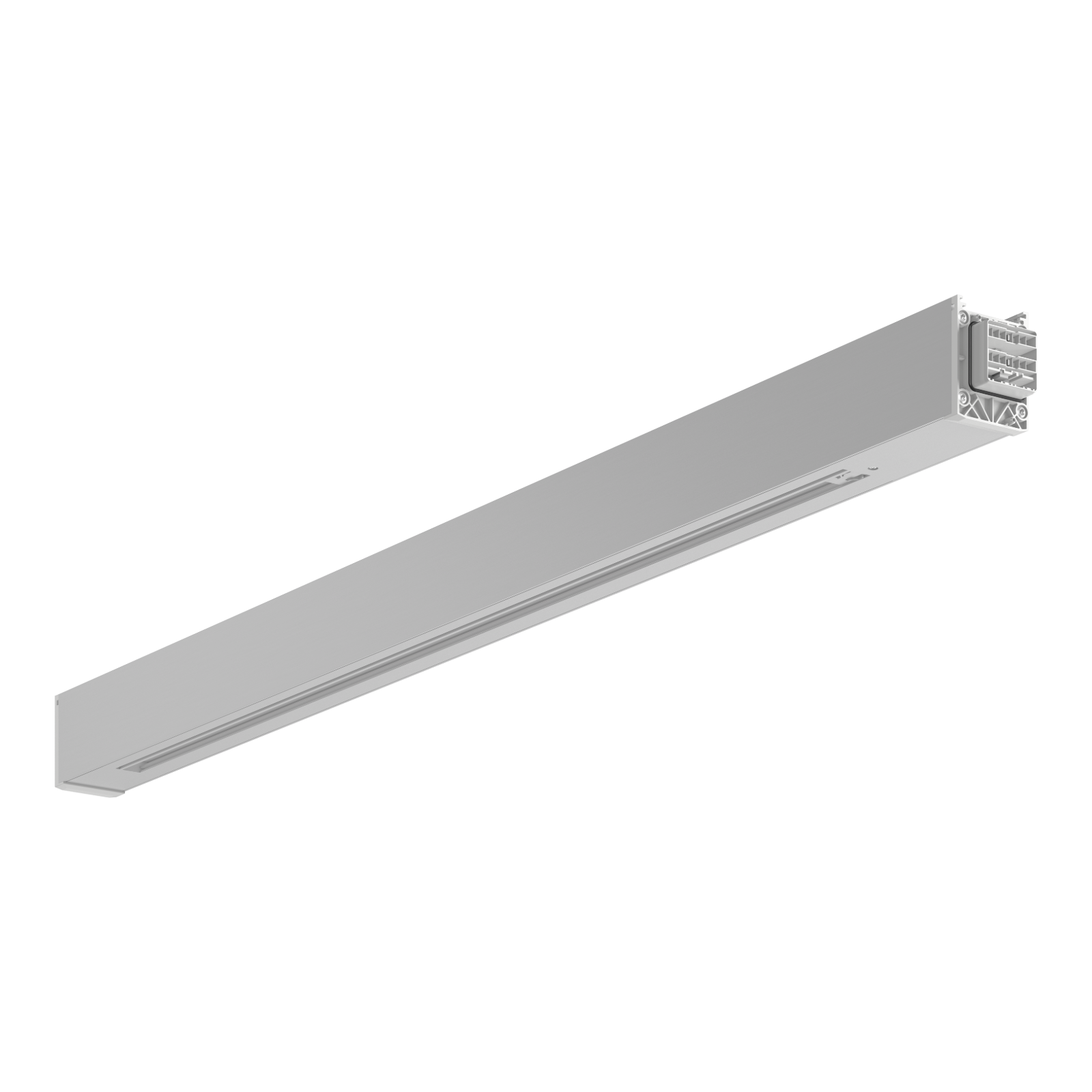

RZB Linedo

The RZB Linedo is a single-component continuous line system for warehouses, logistics, retail and production floors. One IP54 profile carries the gear, through-wiring and optic, so long runs go up quickly and stay clean from end to end. Seven optics cover opal high and opal flat diffusers, 30°, 60° and 90° lenses, plus asymmetric and double-asymmetric versions for shelving and wall zones, with UGR<19 versions for workplaces.

Modules come in 1163mm, 2291mm and 4547mm lengths, delivering from around 1450lm up to 36000lm at up to 210lm/W, in 3000K or 4000K. A switch on the module (MultiLumen) sets the output on site, with DALI versions and 5, 7 or 14-pole through-wiring. It runs from -25°C to +50°C, is rated 100,000h at L90, and takes emergency, sensor and spot modules in the same line. Three profile colours, with up to a 10-year warranty.
