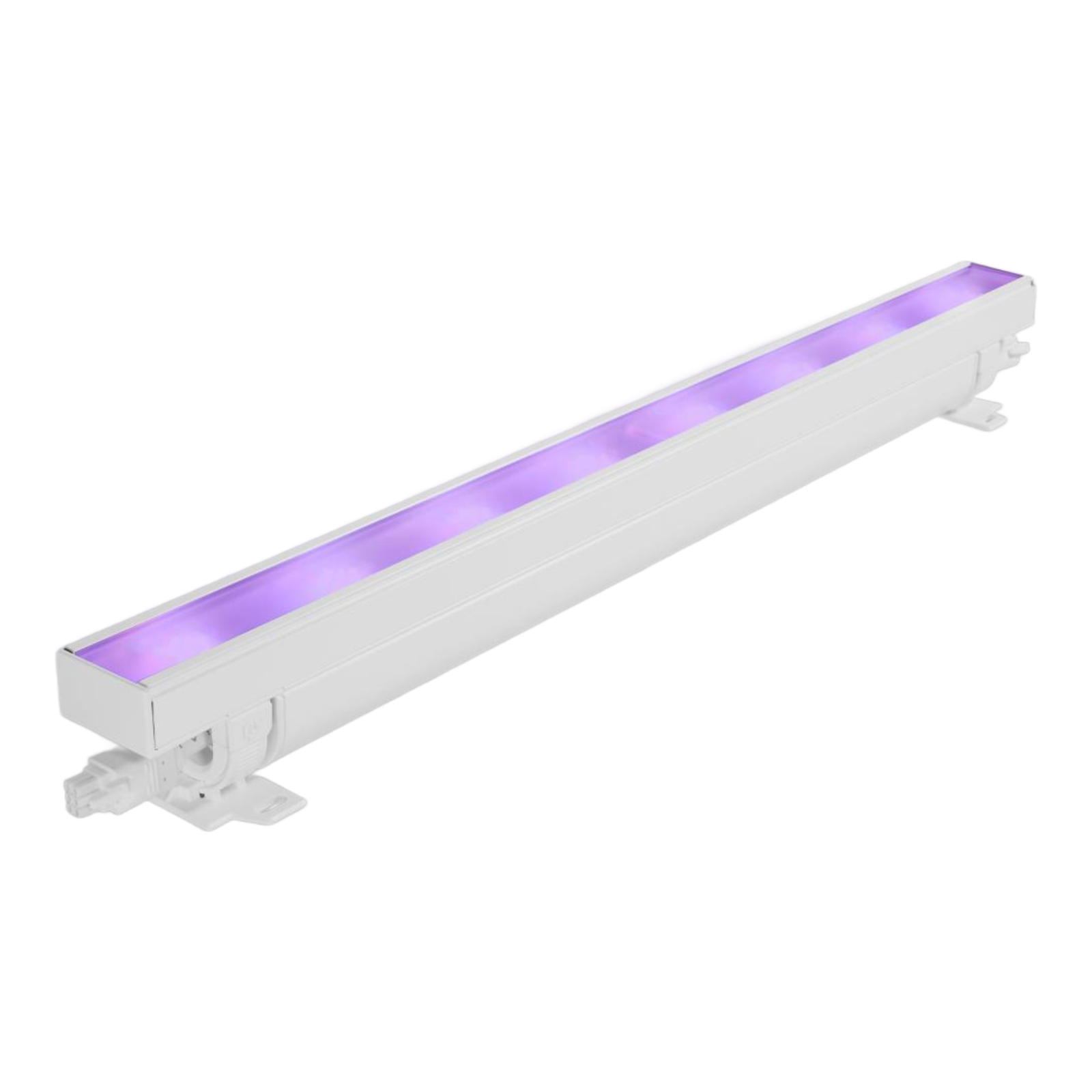

Lumenpulse Lumencore Linear Graze Colour Changing

The Lumenpulse Lumencore Linear Graze Colour Changing is a linear fitting for grazing and washing walls, columns and feature surfaces inside with colour. It uses Lumenpulse’s Opticolor mix-at-source LEDs, with red, green and blue plus white (3000K or 4000K) or amber, so colour blends inside the fitting rather than on the wall, and Optidrive keeps fades smooth.

Lengths are 303mm, 608mm, 913mm and 1218mm, butting end to end for continuous runs, with nine optics running from a tight 10° x 10° graze through elliptical 10° x 60° and 60° x 10° spreads to a 90° x 90° flood. Delivered output runs from about 450lm/m to 2,040lm/m depending on colour mix, optic and power setting, at 13W/m to 43W/m. Control is DMX/RDM or DALI-2 DT8 with dimming to 0.1%, and it is rated IP20 for interior use, in matte white, matte black or a custom finish.

Visors, louvres, honeycomb louvres, snoots and shields help control glare where the fitting is in view, and an alignment track keeps long runs straight.
